B100
The small concrete pump
Made by Bunker, the world’s smallest concrete pump with rotor-stator system.
All hydraulic drive with gradual output and pressure control.
The unique alternative to much more expensive and difficult to manoeuvre machines.

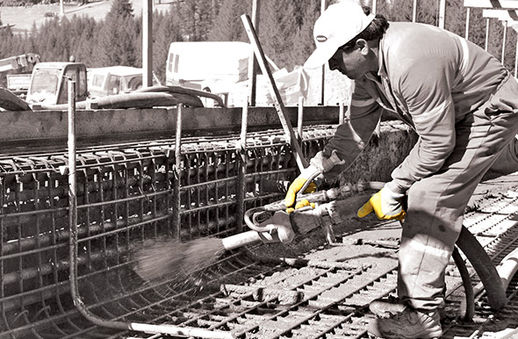

With the B100, you can pump mortar and concrete with aggregates up to 25 mm, you can spray plaster and concrete, inject micro-piles and ties.
Versatile
The B100’s defining feature is the innovative separation of the power pack and pump. Flexible hoses with quick couplings connect the power pack and the pump. The feature enables the pump to be powered remotely even from long distances.
This practical configuration makes the B100 both compact and light, facilitating transport and positioning in difficult to access building sites, town centers, slopes, etc.
The hydraulic power-pack is a true power unit.
With its 37 kW and 90 litres oil output, it can safely operate not only the B100, but some hydraulic tools as well : drills, augers, and saws…Truly revolutionary!
Should you already possess an adequate source of hydraulic power such as an excavator with hydraulic power takeoff, then the pump may be driven from that source thus saving on the cost of the power pack.
… a great advantage!
The B100 equipped with the M180 mixer is indicated when there is a need to prepare the mixes if necessary, for complete autonomy on the construction site. As in the case of pumping or spraying structural mortar in bags premixed fiber-reinforced with metal fibers, for the restoration and protection of reinforced concrete infrastructures. The B100 with mixer is also particularly suitable for pilers who have performed a series of micropiles must fill them with a jet of mortar or concrete.
Applications
-
Its small size facilitates positioning under mixers.
-
Pumping mortar and insulation materials
-
Traditional or pre-mixed application of plaster and filling joints
-
Pumping of self-leveling substrates
-
Structural restoration with cement mortar, premixed, pourable, fiber-reinforced.
